Description
DIN 15401 part 2 applies to the finished parts of drop forged and hammer forged with or without a nose for single hooks with threaded shank on lifting appliances, which are used primarily for the suspension of loads.

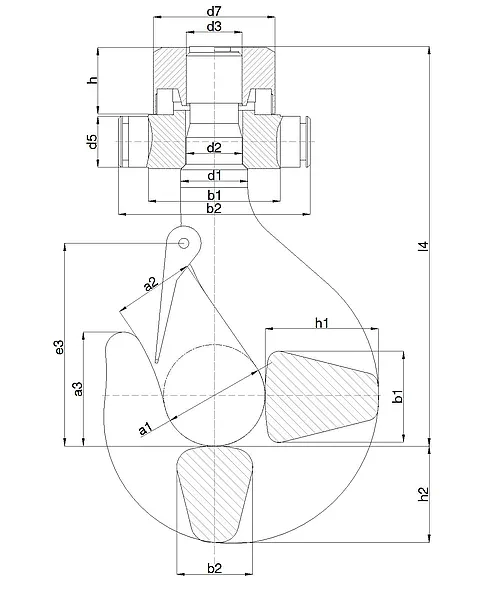

Single Hook Machined fitted with Nut, Crosshead and Bearing
– Hook, Nut and Crosshead forged, heat-treated and thread fully machined as per DIN15403 design
– Material: carbon, alloys
– Mechanical properties: M, P, S, T, V
– Load test: requested/recommended after machining
– Certificate: EN10204-3.1
– Standard: DIN 15401 or GB /T 10051
– Type RSN (Drop forged) for single hooks Nos. 1~12
– Type RFN (Hammer forged) for single hooks Nos. 16~250
