Quad Hook Machined fitted with Nut, Crosshead and Bearing



– Hook, nut and crosshead forged, heat treated and thread fully machined as per DIN15403 design

– Material: super alloys

– Mechanical properties:  V

– Load test: requested/recommended after machining

– Certificate: EN10204-3.1

– Standard: DIN 15402-C





















Category:

Description

A DIN 15402C Quad Hook (also known as a four-prong hook) is a heavy-duty lifting component engineered to German industrial standards (DIN) for use in demanding crane applications. Typically used for very heavy lifts, ranging from 160 tons up to 4000 tons, with equalized loads on all four prongs.

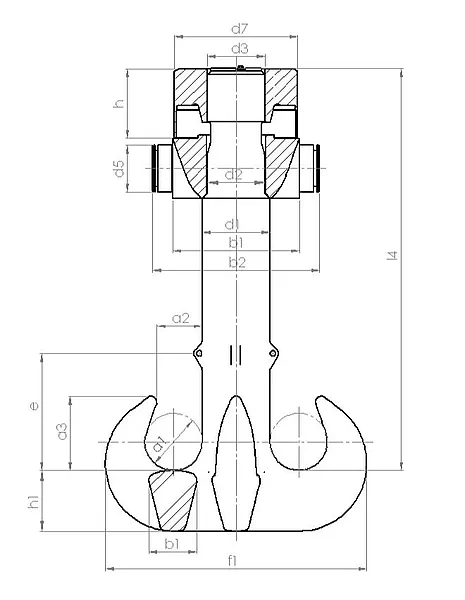

Quad-Hook-Machined-fitted-with-Nut-Crosshead-and-Bearing-Drawing

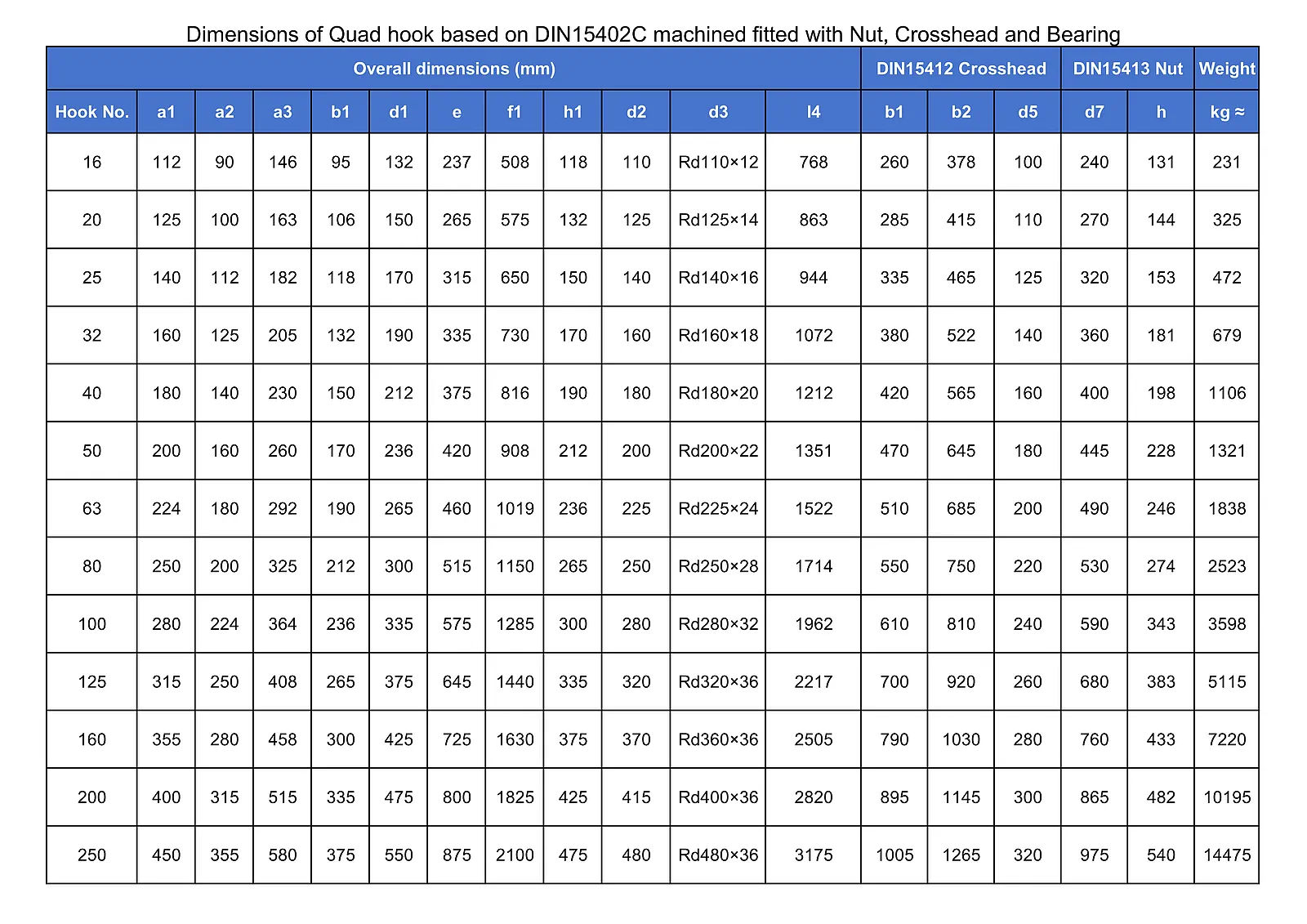

Dimensions of Quad hook based on DIN15402C machined fitted with Nut, Crosshead and Bearing
